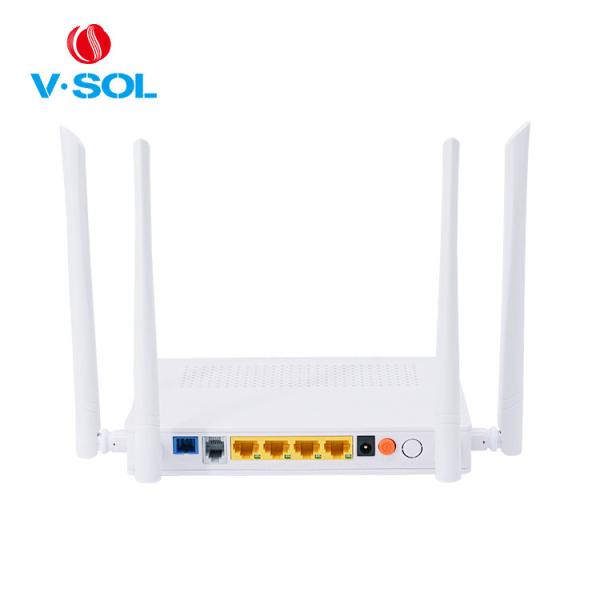

HG325DAC GPON ONT 4GE 1POTS 2USB WiFi 5 802.11AC XPON HGU Dual Band WiFi

Ask Lasest Price
Brand Name :	V-SOL
Model Number :	HG325DAC
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	1000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

HG325DAC GPON ONT 4GE 1POTS 2USB WiFi 5 802.11AC XPON HGU Dual Band WiFi

GPON ONT HGU 1XPON 4GE 1POTS 2USB 802.11AC Dual Band WiFi HG325DAC

Product Description

HG325DAC( 4GE+1POTS+2USB+WiFi 5 XPON HGU terminal device ) is designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through VSOL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

Application

Gigabit Fiber XPON WiFi 5 ONT HG325DAC

XPON | Gigabit-LAN | SIP VoIP | 2*USB

Better Choice for Home/Hotel

XPON+4*GE+WiFi 5+POTS+USB 2.0+USB 3.0+CATV

Technical Parameter

Dimension	178mm×120mm×30m(L×W×H)
Net weight	0.42Kg
Operating condition	•Operating temp: 0°C~+50°C •Operating humidity:10%~90%(non-condensing)
Storing condition	•Storing temp: -30℃~+70°C •Storing humidity: 10%~90% (non-condensed)
Power adapter	DC 12V/1.5A
Power supply	12W
Interface	4GE+1POTS+2USB+WiFi 5
LED Indicators	PWR, LOS, PON, LAN1 ~ LAM4, 2.4G, 5.0G, USB0, USB1, PHONE
USB	1USB 2.0+1USB 3.0

Interface Parameter

PON	•1XPON port(EPON PX20+ & GPON Class B+) •SC single mode, SC/UPC connector •TX optical power: 0～+4dBm •RX sensitivity: -27dBm •Overload optical power: -3dBm(EPON) or -8dBm(GPON) •Transmission distance: 20KM •Wavelength: TX 1310nm, RX1490nm
WIFI	•Compliant with IEEE802.11b/g/n/ac •WiFi:2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID •TX power: 11n--22dBm/11ac--24dBm
USB	2*USB For Shared Storage/Printer or Console
LAN	4*GE, Auto-negotiation RJ45 connectors
Pots	1*FXS, RJ11 connector
