GPON FTTH Network Equipment ONU CATV POTS WiFi Realtek Chipset

Ask Lasest Price
Brand Name :	V-solution
Model Number :	HG323RGWT
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	10000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

GPON FTTH Network Equipment ONU CATV POTS WiFi Realtek Chipset

GPON ONU FTTH Network Equipment 2 External Antenna GPON ONU RF Output

Product Description

1GE 1FE GPON Triple Play ONU offers 1*10/100M and 1*10/100/1000M Ethernet interface, CATV, 1POTS, 1 GPON interface, supports WiFi function, external power supply adapter. It is mostly used in FTTH and FTTO applications.

The CATV WiFi GPON ONU supports the 1000Base-PX20+ standard, which has a maximum optical splitting ratio of 1:64 and a distance of 20 kilometers, as well as one uplink GPON port. When the Triple Play ONU is used in conjunction with an OLT, it may create a flexible network structure and provide total FTTx solutions.

GPON/EPON +1GE+1FE+1POTS+WiFi+CATV

Key Features

Support PPPoE/ Static IP/ DHCP
Support IPv4, IPv6 and IPv4/IPv6
Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
Support DDSN, ALG, DMZ and UPNP
Support CATV interface for Video Service
Support EPON/GPON mode and switch mode automatically
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc

Application

Telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance

Specifications

Technical items	Description
Technical items
Main Chipset	Realtek
CPU	600MHZ
Memory	64M bytes DDR3
Flash	16M SPI
PON Port Type	BOSA
PON interface	1 GPON interface, SC single-fiber/double-fiber, Upstream 1.25Gbps,Downstream 2.5Gbps
Wavelength	GPON Tx 1310nm, GPON Rx 1490nm
Sensitivity	<-27dBm(PX20+)
Overload	>-8dBm(PX20+)
Optical interface	SC/APC connector
LAN interface	1 x 10/100/1000Mbps+1 x 10/100Mbps auto adaptive Ethernet interfaces, RJ45 connectors
CATV	1 CATV F Connector
Downstream POTS interface	1 FXS, RJ11 connectors

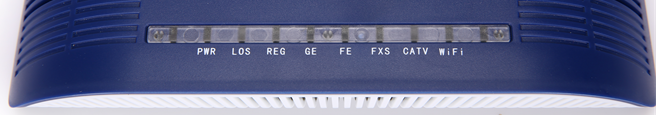

Indicators	9 indicators, for status of power supply, PON, LAN, POTS and CATV .
WLAN	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R two internal antenna
WLAN throughput	100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption
DC power supply	+12V,1.5A, external AC-DC power adaptor
Power consumption	≤10W
Operating condition	Operating temp: -5~+55℃ Operating humidity:10~90%(non-condensed)
Storing condition	Storing temp: -30~+60℃ Storing humidity:10~90%(non-condensed)
Dimension	185mm33mm122mm(WHD)
Net weight	0.3Kg

Order Information

Product model	Product specification	Chipset	SDRAM Memory
HG323RGWT	1 G/EPON+1GE+1FE+1POTS+WiFi+CATV	Realtek	64MB
