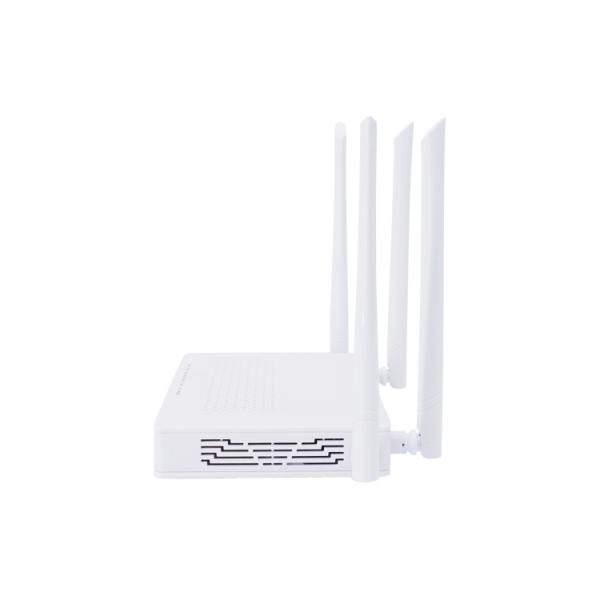

WiFi AC GPON ONU 4GE HGU Fiber Optic Equipment RJ45 White Color

Ask Lasest Price
Brand Name :	V-solution
Model Number :	HG325DAC
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	1000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

WiFi AC GPON ONU 4GE HGU Fiber Optic Equipment RJ45 White Color

GPON ONU 4GE +2POTS + High Dual Band WIFI GPON ONT ONU Router

Product Description

HG325DAC 4GE+1POTS+2USB+WiFi XPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the high performance Chipset, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well.

HG325DAC supports full management of HGU devices through VSOL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

AC1200 Dual Gigabit Interfaces for Gigabit Broadband Access Applications

Key Features

Support SIP protocol
Support IPv4/IPv6
Support full management of HGU functions by VSOL OLT
Plug and play, features auto-detecting, auto configuration, and auto firmware upgrade , etc
Integrated OAM/OMCI remote configuration and maintenance function
Support rich QinQ VLAN functions and IGMP Snooping multicast features
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
Support NAT, Firewall function

Application

FTTH, fixed network operators or cable operators. and others

Specifications

Dimension	178mm×120mm×30m(L×W×H)
Net weight	420g
Operating condition	Operating temp: 0°C~+50°C Operating humidity:10%~90%(non-condensing)
Storing condition	Storing temp: -30~+70°C Storing humidity: 10~90% (non-condensed)
Power adapter	DC 12V/1.5A
Power supply	12W
Interface	4GE+1POTS+2USB+WiFi
LED Indicators	12, For Status of PWR,LOS,PON,LAN1~4, 2.4G,5.0G, USB0,USB1,PHONE
USB	1 x USB2.0 1 x USB3.0

PON	•1 G/EPON port(EPON PX20+ and GPON Class B+) •Receiving sensitivity: ≤-28dBm •Transmitting optical power: 0～+4dBm •Transmission distance: 20KM
Wavelength	•Tx1310nm,Rx 1490nm
Optical	•SC/UPC connector
LAN	•4 x 10/100/1000Mbps
POTS	• 1 x RJ11 connector • Support: G.711A/G.711U/G.723/G.729 codec • Support: T.30/T.38/G.711 Fax mode, DTMF • Relay
WLAN	• Compliant with IEEE802.11b/g/n/ac • 2.4GHz Operating frequency: 2.400- 2.483GHz • 5.0GHz Operating frequency: 5.150-5.825GHz • Support MIMO, 4T4R,5dBi external antenna, • rate up to 1.167Gbps • Support: multiple SSID • TX power: 11n--22dBm/11ac--24dBm
