GPON EPON VSOL 4 PORT GEPON OLT Fiber Network 20KM FTTH V1600G0

Ask Lasest Price
Brand Name :	VSOL
Model Number :	V1600G0
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	100 Units per Day
Delivery Time :	5-8 work days
Certification :	CE RoHS FCC

Add to Cart

Product Details
Company Profile

GPON EPON VSOL 4 PORT GEPON OLT Fiber Network 20KM FTTH V1600G0

V-Solution 4 PON Port 20KM Fiber Ftth GPON EPON GEPON Olt V1600G0

Introduction

The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT application.

Satisfactory standard

Meet ITU-T G984/G.988 standard
Meet China's relevant GPON standards

Easy to manage

Friendly EMS/Web/Telnet/CLI management
CLI command style similar to mainstream manufacturers
Support APP management

Fully open platform

Open to any brand of ONT

High performance cost

1U height compact design
Adopt mainstream chip scheme

Product Appearance

Features

LED	ON	Blink	OFF
PWR	The device is powered up	—	The device is powered down
SYS	Device is starting	Device is running normal	Device is running abnormal
PON1～PON16	ONT is registered to the PON system	ONT is registering to the PON system	ONT is not registered to the PON system or ONU do not connect to OLT
SFP/SFP+	The device is connected to the port	The device is ongoing data transmission	The device is not connected to the port
Ethernet (green-ACT)	—	Port is sending or/and receiving data	—
Ethernet (yellow-Link)	The device is connected to the port	—	The device is not connected to the port
PWR1/PWR2(G0)	Power module online and work normal.	—	Powr module offline or not work

Item		V1600G0	V1600G1	V1600G1-B/V1600G1-B1	V1600G2
Chassis	Rack	1U 19 Inch Standard Box
GE/10GE Uplink Port	QTY	6	16	8/4	12
	Copper GE	4	8	4/0	4
	SFP(GE)	2	6	2	4
	SFP+(10GE)		2	2	4
GPON Port	QTY	4	8	8	16
	Physical Interface	SFP Slots
	Connector Type	Class C+
	Max splitting ratio	1:128
Management Ports		110/100BASE-T out-band port, 1CONSOLE port
PON Port Specification (Class C+ module)	Transmission Distance	20KM
	GPON port speed	Upstream 1.244Gbps, Downstream 2.488Gbps
	Wavelength	TX 1490nm, RX 1310nm
	Connector	SC/UPC
	Fiber Type	9/125μm SMF
	TX Power	+3~+7dBm
	Rx Sensitivity	-30dBm
	Saturation Optical Power	-12dBm

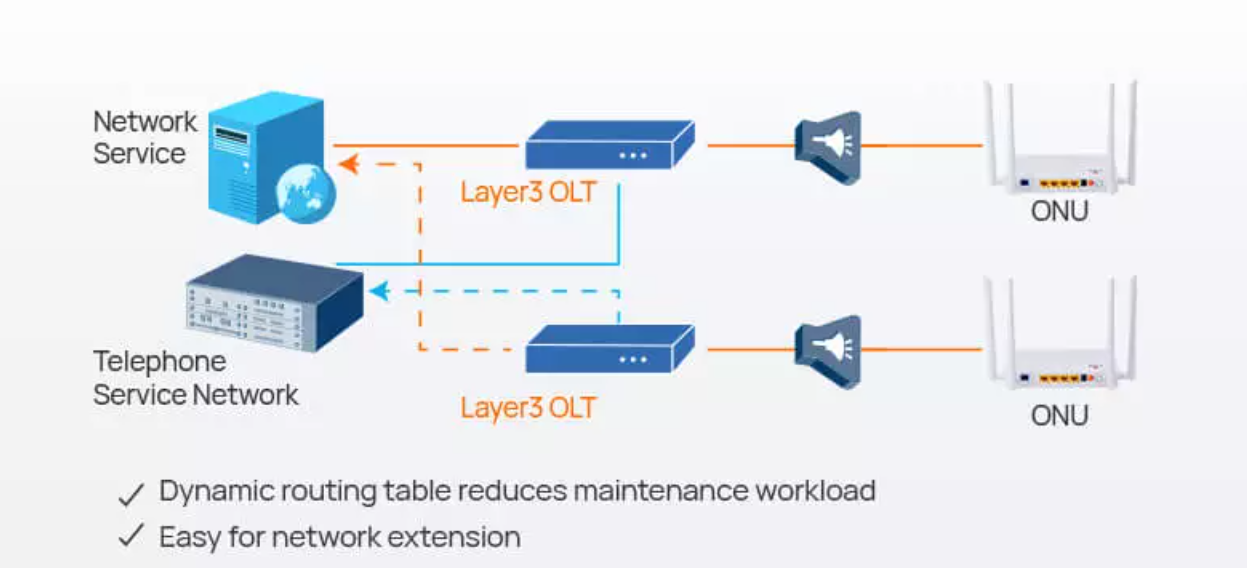

Application
