Wild Type GPON OLT V1600G1WEO Integrated 8 PON Port With EDFA

V-SOL Wild-Type GPON OLT V1600G1WEO Integrated 8 PON Port With EDFA

Introduction

Outdoor GPON OLT V-SOL V1600G1WEO OLT is a outdoor-type GPON OLT product with an integrated 8 PON port with EDFA.It is appropriate to be deployed in outdoor environment and it can be used for ‘Triple-Play’ , VPN, IP Camera, Enterprise LAN and ICT applications.

Highlights

Modular Design, more flexible function expansion
Wide-Temperature Design, and it is cooled through the shell to ensure the stability of field operation
Dual Power Module Design, V1600G1WEO-PWR:AC:90~264V, 47/63Hz input, 24V DC output,or V1600G1WEO-BAT:BBU(option)
One Station Deployment, quickly configuration on-line, intelligent business configuration

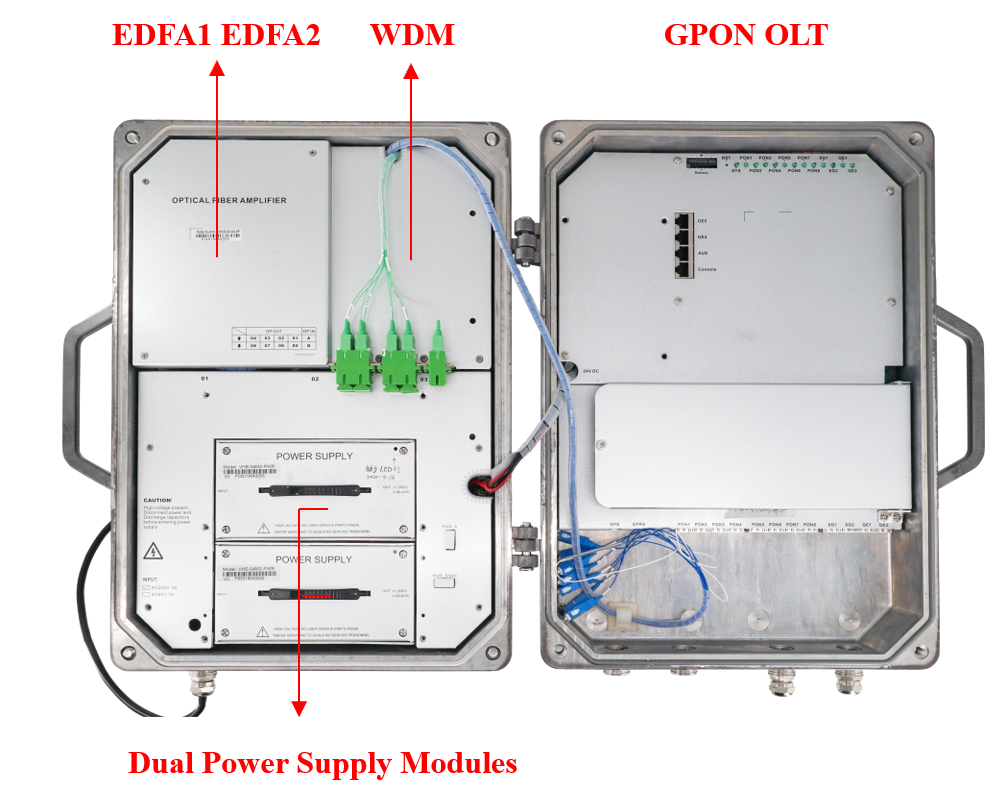

Product Appearance

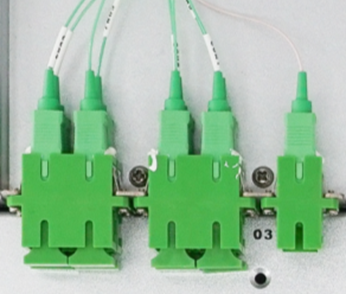

The WDM module has 8 output ports. These 8 ports are used for COM output ports.

The definition of Output ports of the WDM module:

OP OUT				OP IN
4	3	2	1	A
8	7	6	5	B

The application topology of V1600G1WEO:

Software Function
License Management	ONT limit	Limit the number of ONT registration, 64-1024, step 64. When the number of ONT reach the max number permit, add new ONT to system will be refused.
License Management	Time limit	Limit system used time, 31days. Equipment trial license, after 31days of running time, all ONTs be set offline.
PON mac table	A MAC table of PON, including MAC address, VLAN id, PON id, ONT id, gemport id for easier services checking, troubleshooting.
ONU management	Profile	Including ONT, DBA, TRAFFIC, LINE, SERVICE, ALARM, PRIVATE profiles. All ONT features can be configured by profiles.
	Auto learn	ONT automatically discovery, register, online.
	Auto configure	All features can be automatically configured by profiles when ONT auto online—plug and play.
	Auto upgrade	The ONT firmware can be auto upgraded. Download ONT firmware to OLT from web/tftp/ftp.
	Remote config	The powerful private OMCI protocol provides remote HGU configuration including WAN, WiFi, POTS, etc.

V1600G1WEO: LED information

LED	ON	Blink	OFF
SYS	Device is starting	Device is running normal	Device is running abnormal
PON1～PON8	ONT is registered to the PON system	—	ONT is not registered to the PON system or ONU do not connect to OLT
GE1~GE2(SFP)	The device is connected to the port	The device is ongoing data transmission	The device is not connected to the port
XG1/XG2(SFP+)	The device is connected to the port	The device is ongoing data transmission	The device is not connected to the port
Ethernet (green-ACT)	—	Port is sending or/and receiving data	—
Ethernet (yellow-Link)	The device is connected to the port	—	The device is not connected to the port
