1550nm Fiber Optical Amplifier build-in PLC splitter, FWDM optical multiplexer for CATV, FTTX and HFC

Product Description

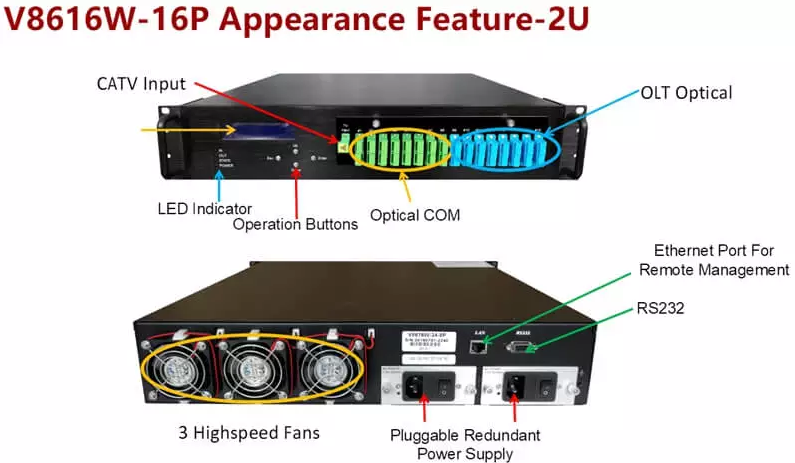

The V8616Y Series Ytterbium and Erbium Doped Fiber Amplifiers (YEDFA) is designed for use in CATV, FTTX and HFC application. It is optimized for 1550nm wavelength and is packaged in a 2U 19” rack housing. The product offering is flexible enough to perform all the requirements of CATV,FTTX and HFC applications. The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget. The V8616Y series also provide monitors and associated alarms for all vital characteristics. The status and management of the device can be monitored and managed either from the VFD front panel display or remotely via Ethernet based-SNMP . The device also support multptical output by build-in PLC splitter and FWDM (1310nm/1490nm) optical multiplexer for Triple-play FTTX network applications.

Highlights

• Support network management
• No mechanical lock, software intelligent switch
• Easy cleaning and maintenance for fiber port
• Power double backup

Operating principle

Specifications

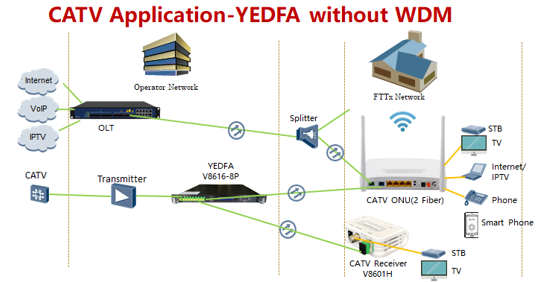

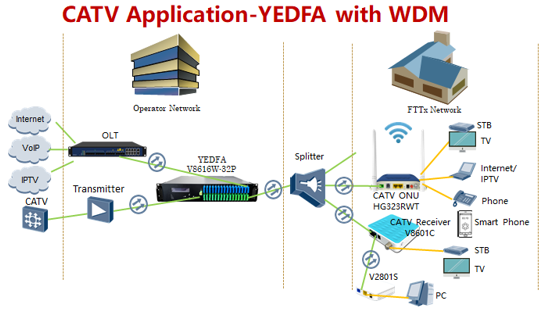

Application
