GE 8 Ports MDU XPON PoE Dual band WiFi Reverse Support IEEE802.3at

Ask Lasest Price
Brand Name :	V-solution
Model Number :	ICT3310DPS-8G2NAC
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	1000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

GE 8 Ports MDU XPON PoE Dual band WiFi Reverse Support IEEE802.3at

XPON MDU GPON EPON 8 Ports GE + WiFi With Poe Reverse Support IEEE802.3at

Product Description

ICT series product is a broadband access device designed to meet the needs of users for multiple business integration.

ICT series product is based on the PON technology mature and stable, high cost performance, combined with 802.11n wireless technology (2T2R), L2 Ethernet switching technology and high quality VoIP technology, high reliability, easy management and good quality of service (QoS) guarantees, etc.

8 Port Gigabit Mananged POE+ XPON ONU
xPON + 8×GE(POE+) + 2×2 WiFi5

Key Features

Dual mode(EPON/GPON)
Routing ONU/ONT
Best WiFi coverage
Good voice quality

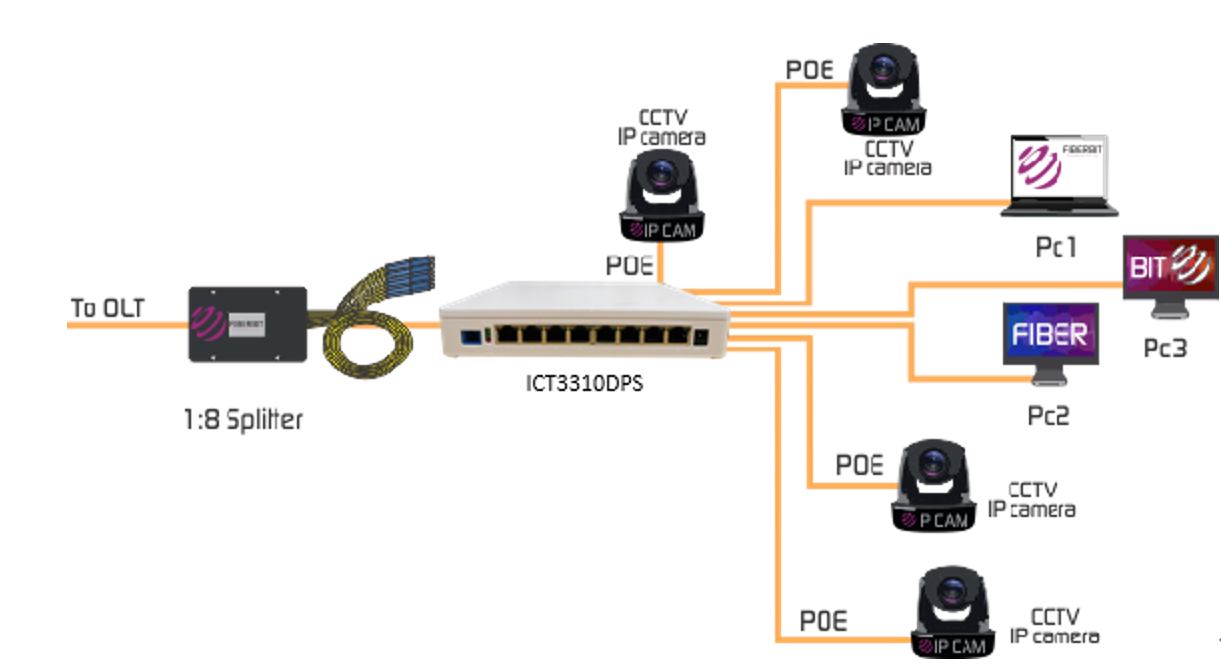

Application

Specifications

Parameter Name	Software Parameter
Parameter Name	XPON
LAN	Support Port rate limiting
WAN	Support config first LAN interface as wan interface
WLAN	Integrated 802.11b/g/n/ac Support max 128 users Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM Support WiFi roaming
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN based WAN and VLAN based LAN
Multicast	Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
QoS	Support 4 queues Support SP and WRR Support 802.1P Support DSCP
L3	Support IPv4,IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route,NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ, DNS, ALG,UPnP Support Virtual Server

Parameter	Hardware Parameter
Parameter	XPON
Chipset	RTL9607CP
PON	SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps,EPON/GPON Dual Mode
Wavelength	Tx 1310nm, Rx 1490nm
Sensitivity	<-27dBm(CLASS B+)
Optical Type	SC/UPC/PC
Interface Type	8 *10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector(4 GE Option)and 1POTS, RJ11 connector. Support IEEE802.3at standards (POE+ PSE).
WiFi Interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support: multiple SSID
Indicators	4, For POWER /WIFI / PON /LOS
