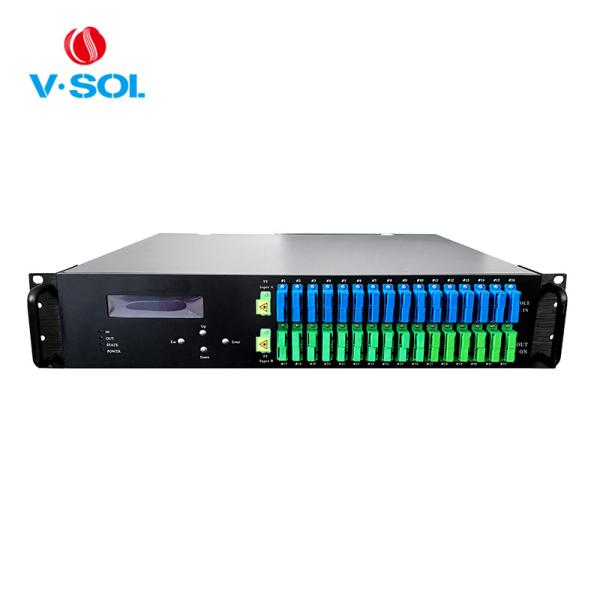

32-Port 1550nm fiber optic transmitter FWDM LCD Display EMS/SNMP Management

Product Description

The V8616Y Series Ytterbium and Erbium Doped Fiber Amplifiers (YEDFA) is designed for use in CATV, FTTX and HFC application. The product offering is flexible enough to perform all the requirements of CATV,FTTX and HFC applications. The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget. The V8616Y series also provide monitors and associated alarms for all vital characteristics. The device also support multipul optical output by build-in PLC splitter and FWDM (1310nm1490nm) optical multiplexer for Triple-play FTTX network applications.

Highlights

• Standard 19 inch 2U Rack YEDFA

• Output port from 4-64ports optional

• Output powers rang from 27~40dBm optional

• Output power adjustable -3~0dB

• Wide input dynamic range(-5 to +10dBm)

• High Isolated input & output(30dB for max)

• Low power consumption

• Front Panel Key Switch for pump on/off control

• FWDM optional

• VFD Panel Status Indicator for local monitor

• Remote management via SNMP (Ethernet Interface)

Operating principle

Specifications

Application
