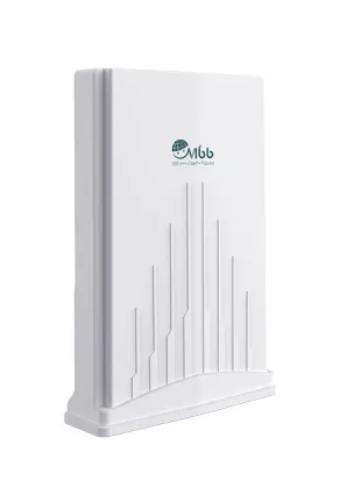

Outdoor 4G CPE Router LTE IP65 Waterproof Signal strength LED

Ask Lasest Price
Brand Name :	SmileMBB
Model Number :	XKC7243
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	1000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

Outdoor 4G CPE Router LTE IP65 Waterproof Signal strength LED

4G CPE Router LTE 4G Outdoor CPE Router with IP65 Water and Dust Proof

Product Description

XKC7243 is a highly advanced 4G outdoor CPE Router, it provides a high throughput data transmission network for residential, business and enterprise users, Customers enjoy an easy plug & play broadband access solution.

Highlights

3GPP R10/11 CAT6
4G Outdoor CPE
IP65 proof
PoE Power Supply
Usage scenario: Outdoor, Home, office, etc.

4G Outdoor CPE Router

3GPP R10/11 CAT6 | CBRS Supported | PoE Power Supply

Adopting 4×4 MIMO, XKC7243 4G outdoor CPE Router doubles the peak LTE speed to 300 Mbps.
The newly designed LTE antennas receive more signals, thus further enhance the speed

Easy Installation

XKC7243 4G outdoor CPE Router is installed outdoors to better accept 4G signal,
especially in 4G weak signal area.
Flexible installation: wall and pole mounted.

Specifications

Technical parameter
Chip platform	GCT GDM7243QT
Frequency band	FDD 1/3/7/8/20/28 TDD 38/40/41/42/43/48
Protocol version	3GPP Release 10/11 CAT6
LTE Speed	TDD DL 220Mbps/UL 15Mbps (Config 2:7) FDD DL 300Mbps/UL 75Mbps
Water and Dust proof	IP65
Size	250mm x 168mm x 58.5mm
Power Supply	24V non-standard POE default IEEE 802.3at compatible POE customized
Power adapter	Input: AC 90~240V Output: DC 24V/0.5A
Physical interface	1 x RJ45 10/100/1000Mb/s POE, 1 x SIM Slot (1.8V/3.0V 2FF)
LED	4 LED Indicators (PWR, NET, SIM, RF Signal)
Button	Reset(Pin Hole)
Characteristic	VPN Support (IPsec, L2TP over IPsec, GRE over IPsec, L2TP V2/V3, GRE L2/L3, PPTP), Firewall, Local & Remote management
