HG323RG GPON ONT 1GE 1FE 1POTS VoIP Router For SMEs And Enterprises

Ask Lasest Price
Brand Name :	V-solution
Model Number :	HG323RG
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	10000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

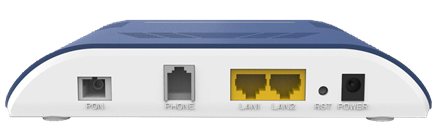

HG323RG GPON ONT 1GE 1FE 1POTS VoIP Router For SMEs And Enterprises

HG323RG GPON ONT G/EPON+1GE+1FE+1POTS VoIP Router For SMEs And Enterprises

Product Description

HG323RG GPON ONT is a VoIP router which consist of G/EPON, 2 of fast ethernet ports and 1 of POTS port. It meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an EPON/GPON Gigabit Ethernet products.

HG323RG is based on cost-effective EPON/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.

GPON/EPON +1GE+1FE+1POTS VoIP Router

Key Features

Support NAT, Firewall function.
Dual Mode( can access gpon/epon olts ).
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Integrated OMCI remote configuration and maintenance function.
Support rich QinQ VLAN functions and IGMP Snooping multicast features.
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Integrated line testing compliant with GR-909 on POTS
Support IPv4 and IPv6 dual stack

Application

SMEs, Enterprise, FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance

Specifications

Technical item	GPON/EPON +1GE+1FE+1POTS VoIP Router
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
Wavelength	Tx1310nm, Rx 1490nm
Optical interface	SC/UPC connector
LAN interface	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
POTS interface	1 FXS, RJ11 connectors Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909
LED	8, For Status of POWER,LOS,PON,LAN1,LAN2,PHONE,Pair, WiFi
Operating condition	Temperature: 0℃～+50℃ Humidity: 10%～90%(non-condensing)
Storing condition	Temperature: -30℃～+60℃ Humidity: 10%～90%(non-condensing)
Power supply	DC 12V/1A
Power supply	≤6W
Dimension	185mm×120mm×34mm(L×W×H)
Net weight	0.24Kg

Order Information

Product model	Product specification	Chipset	SDRAM Memory
HG323RG	1 G/EPON+1GE+1FE+1POTS	Realtek	64MB
