HGU GPON EPON ONU / 1200 Mbps WiFi Router With 1 Pots Voice Interface

Ask Lasest Price
Brand Name :	V-solution
Model Number :	HG323DAC
Price :	Negoticable
Payment Terms :	Negociable
Supply Ability :	10000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

HGU GPON EPON ONU / 1200 Mbps WiFi Router With 1 Pots Voice Interface

HG323DAC HGU GPON/EPON ONU 1200 Mbps WiFi Router with 1 POTS VOICE INTERFACE

Product Description

HG323DAC with 2GE+ 1 POTS+ WiFi HGU GPON/EPON terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high-quality VoIP as well. Support full management of HGU devices through VSOL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

High Gain 4 Antennas | IPv6 & MU-MIMO | Easy Mesh | 1200M Dual-band

Key Features

Support full management of HGU functions by VSOL OLT
Plug and play, features auto-detecting, auto[1]configuration, and auto firmware upgrade, etc.
Integrated OAM/OMCI remote configuration and maintenance function
Support rich QinQ VLAN functions and IGMP Snooping multicast features
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
Support 802.11n/ac Wi-Fi(4T4R) function
Support NAT, Firewall function
Support IPv4 and IPv6 dual stack
Support SIP protocol

Application

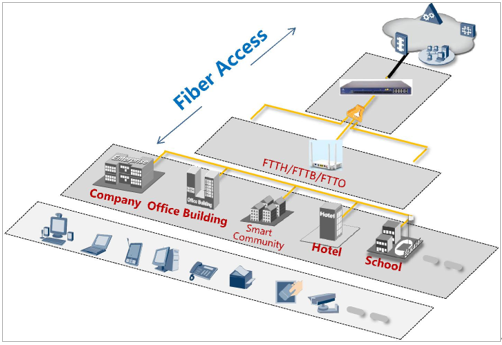

FTTH, fixed network operators or cable operators. and others

Specifications

Technical item	HG323DAC 2GE+1POTS+WiFi
PON interface	1 G/EPON port (EPON PX20+ and GPON Class B+)
	Receiving sensitivity: <=-28dBm
	Transmitting optical power: 0～+4dBm
	Transmission distance: 20KM
Wavelength	Tx1310nm, Rx 1490nm
Optical interface	SC/UPC connector
LAN interface	2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
POTS interface	1 x RJ11 connectors
	Support: G.711A/G.711U/G.723/G.729 codec
	Support: T.30/T.38/G.711 Fax mode, DTMF Relay
WiFi interface	Compliant with IEEE802.11b/g/n/ac
	2.4GHz Operating frequency: 2.400-2.483GHz
	5.0GHz Operating frequency: 5.150-5.825GHz
	Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps
	Support: multiple SSID
	TX power: 11n--22dBm/11ac--24dBm
LED	9, For Status of POWER, LOS, PON, WAN, LAN1, LAN2,2.4G,5G, PHONE
Operating condition	Temperature: 0℃～+50℃
Operating condition	Humidity: 10%～90%(non-condensing)
Storing condition	Temperature: -30℃～+60℃
Storing condition	Humidity: 10%～90%(non-condensing)
Power adapter	DC 12V/1.5A or DC12V/1.0A
Power supply	≤10W
Dimension	178mm×120mm×30m(L×W×H)
Net weight	0.32Kg
