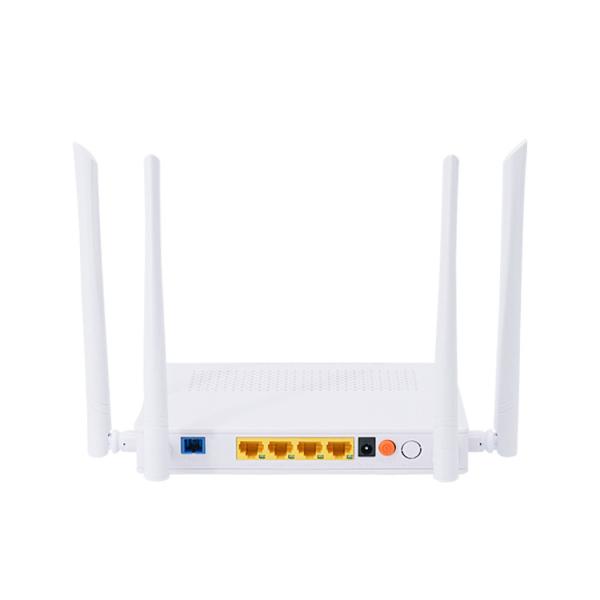

V-SOL GPON ONT 1PON 4GE 1USB WIFI5 Dual Band Ftth Modem V2804DAC

Ask Lasest Price
Brand Name :	V-solution
Model Number :	V2804DAC
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	1000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

V-SOL GPON ONT 1PON 4GE 1USB WIFI5 Dual Band Ftth Modem V2804DAC

V-SOL GPON ONT 1xPON+4GE+1USB+WIFI5 Dual Band Ftth Modem ONT V2804DAC

Product Description

V2804DAC ONT 4GE+WiFi5+USB3.0 GPON/EPON ONT WiFi Mesh terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators.

V2804DAC is based on the Realtek chipset technology, which have high ratio of performance to price, and the technology of WiFi5(Dual band), Layer 2/3, and WiFi EasyMesh as well. V2804DAC supports full management of ONT terminals through V-SOL OLTs. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

Application

Panel Lights

LED	ON	Blink	OFF
PWR	The device is powered up	N/A	The device is powered down
PON	Green is registered to the PON system	Green is registering to the PON system	Device is not registered to the PON system
LOS	Device does not receive optical signals	N/A	Device have received optical signals
LAN1~LAN4	Port is connected properly	Port is Sending/Receiving Data	The subscriber network cable is not plugged tightly or the port connection is incorrect or no connection.
WiFi (2.4G/5Ghz)	WiFi Turn On	WiFi Turn On with ongoing data transmission	Devide is Power Off or WiFi Turn Off
USB	USB device is connected	Ongoing data transmission	USB device isn’t connected

Port Type	Function
PON	Connect PON port with internet by SC/UPC type, single mode optical fiber cable.
LAN 1/2/3/4	Connect device with ethernet port by RJ-45 cat5 cable.
RST Button	Press down reset button and keep about 5seconds to make the device restart and recover from the factory default settings.
Pair Button	Press down WLAN Pair button to begin pairing.
WIFI Button	WLAN on/off.
DC12V	Connect with power adapter.
