V2810E-4PD 4FE EPON ONU Network Device Reverse PoE For Fiber Optic Router

Ask Lasest Price
Brand Name :	V-solution
Model Number :	V2810E-4PD
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	10000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

V2810E-4PD 4FE EPON ONU Network Device Reverse PoE For Fiber Optic Router

V2810E-4PD Epon Onu 4FE Reverse PoE For Fiber Optic Network Router

Product Description

EPON/GPON Reverse PoE(PD) ONU with reverse PoE designed for fulfilling FTTH request of telecom operators, internet access of SOHO. This product is support EPON model or GPON model, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well.

It is highly reliable and easy to maintain, with guaranteed QoS. Its EPON model is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1) from China Telecom, Its GPON model is fully compliant to ITU-TG.984.x. ONU is powered by the power sourcing equipment (PSE) deployed in users' residences, applied in scenarios where there is no alternating current (AC) power supply in corridors.

4xFE Reverse PoE EPON ONU

Key Features

Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Integrated OAM remote configuration and maintenance function.
Support rich QinQ VLAN function and IGMP Snooping multicast feature.
Functions like transceiver diagnostic monitoring, transmitter disable, etc.
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Easily configuration by local CLI.

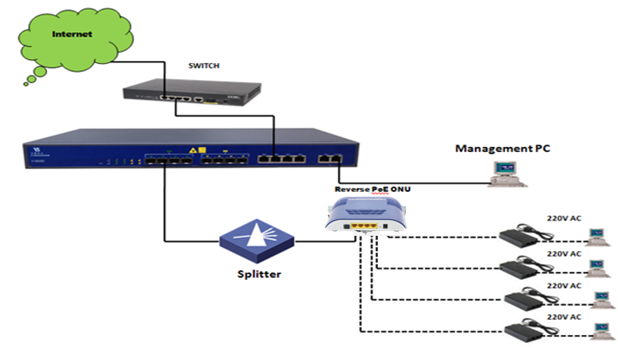

Application

Specifications

Technical item	4FE+Reverse PoE (PD)
PON interface	1EPON port(PX20+) or 1GPON port(Class B+)
Wavelength	Tx1310nm,Rx 1490nm
Optical interface	SC/UPC connector
LAN interface	4 x 10/100Mbps auto adaptive Ethernet interfaces.10/100M Full/Half, RJ45 connector
LED	8, For Status of POWER,LOS,PON,LAN,SYS,PoE
Operating condition	Temperature: -20℃～+60℃ Humidity: 10%～90%(non-condensing)
Storing condition	Temperature : -30℃～+70℃ Humidity :10%～90%(non-condensing)
POE Power supply	Reserve POE: +10~+30VDC
DC Power(option)	DC 12V/0.5A
Power consumption	≤6W
Dimension(L×W×H)	185mm×185mm×34mm
Net weight	0.25Kg
