Secure EPON 1GE ONU Network Device VLAN Multicast IGMP Snooping Enhanced QoS

Ask Lasest Price
Brand Name :	V-solution
Model Number :	V2801SE
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	10000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

Secure EPON 1GE ONU Network Device VLAN Multicast IGMP Snooping Enhanced QoS

Epon Onu 1 Port GE Secure ONU VLAN Multicast IGMP Snooping Enhanced QoS

Product Description

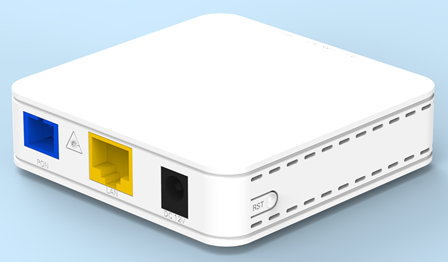

V2801SE EPON ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function. It meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products.

V2801SE ONU is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

Single Port EPON GPON ONU

Key Features

Compatible with popular OLT(HW,ZTE...)
Industrial Design
Routing or Bridging Mode
Detecting Rogue ONU
Flow & Storm Control , Loop Detection
Firewall: DDOS, Filtering Based on ACL/MAC/URL
O&M: WEB/TELNET/OAM(OMCI)/TR069

Application

1GE ONU Application

Specifications

Technical item	1GE
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation:≥-8dBm Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector
PD(Reverse POE)	DC +12 ~ +24V
LED	3, For Status of REG,SYS,LINK/ACT
Operating condition	Temperature: -30℃～+70℃ Humidity: 10%～90%(non-condensing)
Storing condition	Temperature : -30℃～+70℃ Humidity :10%～90%(non-condensing)
Power supply	DC 12V/0.5A
Power consumption	≤4W
Dimension	82mm×82mm×25mm(L×W×H)
Net weight	85g
