V2808PD-ZE 8FE Ports EPON ONU Reverse PoE With Waterproof Case

V2808PD-ZE Epon Onu 8FE Ports Reverse PoE With Waterproof Case

Product Description

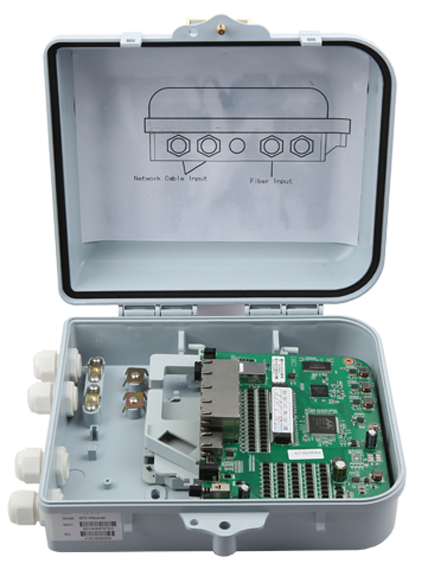

The V2808PD-ZE Reverse PoE is a box-type device measuring 1-U high and 11-inch wide, providing one GEPON uplink ports and eight LAN user ports, and is powered by the power sourcing equipment (PSE) deployed in users' residences. The V2808PDReverse PoE is applied in scenarios where there is no alternating current (AC) power supply in corridors, featuring easy installation and maintenance, broad temperature range, low power consumption, mute design, high stability, environment-friendlily, and energy conservation.

The V2808PD-ZE Reverse PoE can be powered by any one,some or all of the eight LAN user ports,it also can be powered by external 12V DC adapter.

8FE Ports Reverse PoE EPON ONU

Key Features

Functions like transceiver diagnostic monitoring, transmitter disable, etc.
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Easily configuration by local CLI.
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Integrated OAM remote configuration and maintenance function.
Support rich QinQ VLAN function and IGMP Snooping multicast feature.

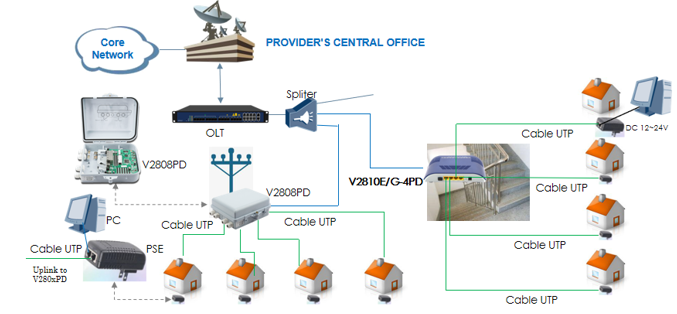

Application

Specifications

Technical item	4FE+Reverse PoE (PD)	8FE+Reverse PoE (PD)
PON interface	1EPON port(PX20+) or 1GPON port(Class B+)
Wavelength	Tx1310nm,Rx 1490nm
Optical interface	SC/UPC connector
LAN interface	4 x 10/100Mbps auto adaptive Ethernet interfaces.10/100M Full/Half, RJ45 connector	8 x 10/100Mbps auto adaptive Ethernet interfaces.10/100M Full/Half, RJ45 connector
LED	8, For Status of POWER,LOS,PON,LAN,SYS,PoE	20, For Status of POWER,LOS,PON,LAN,SYS,PoE
Operating condition	Temperature: -30℃～+60℃ Humidity: 10%～90%(non-condensing)
Storing condition	Temperature : -40℃～+85℃ Humidity :10%～90%(non-condensing)
POE Power supply	Reserve POE: +12~+24VDC	Reserve POE: +24~+57VDC
DC Power(option)	DC 12V/0.5A	DC 12V/1A
Power consumption	≤6W	≤8W
Dimension(L×W×H)	185mm×185mm×34mm	280mm×250mm×100mm
Net weight	0.25Kg	0.8Kg

Note:

1. ONU can be powered by any one, some or all of the 4/8 lan ports. It also can be powered by external 12V DC adapter.

2. When press RST button over 3 seconds, onu will restart and recover from the factory default settings.
