2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU

Ask Lasest Price
Brand Name :	V-solution
Model Number :	HG326RGG
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	10000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU

Dual Mode ONU 2x FXS Telephone Port Wifi Router Voip Router gpon hGU

Product Description

G/EPON 1GE+4GE+2POTS+WiFi+USB ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

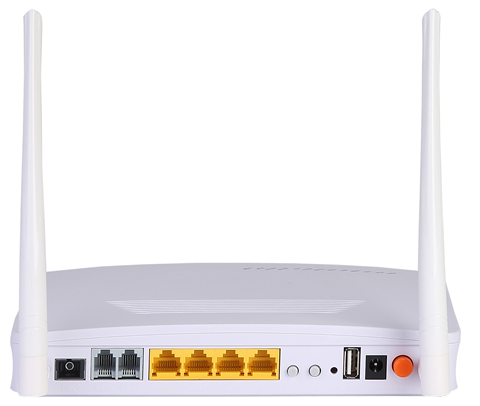

GPON/EPON 4GE+2POTS+WiFi+USB ONU

Application

Specifications

LED	Mark	Status	Description
Power	PWR	On	The device is powered up.
Power	PWR	Off	The device is powered down.
Registration	PON	On	The device is registered to the GPON system.
		Off	Device is not registered to the GPON system.
		Blink	Device is registering.
Optical signal	LOS	Blink	Device does not receive optical signals.
Optical signal	LOS	Off	Device has received optical signals.
WAN	WAN	On	WAN is effective.
WAN	WAN	Off	WAN is ineffective.
Wireless	WiFi	On	WiFi turned on.
		Off	Device is power off or WiFi turned off.
		Blink	WiFi turn on and with ongoing data transmission.
Pots	FXS1 FXS2	On	Device has registered to the soft-switch, but without ongoing data transmission.
		Off	Device is power off or not registered to the soft-switch.
		Blink	Phone hooks off or the port is with ongoing data transmission.
Ethernet	ETH1 iTV ETH3 ETH4	On	Port is connected properly.
		Off	Port connection exception or not connected.
		Blink	Port is sending or/and receiving data.
Pair	WPS	On	WPS client is connected. ( LED turn off after 5 minutes of successful connection)
		Off	Does not use WPS or WPS client is connected.( LED turn off after 5 minutes of successful connection)
		Blink	WPS client is connecting.
USB	USB	On	USB device is connected, but without ongoing data transmission.
		Off	Device is power off or USB device is not connected.
		Blink	USB is with ongoing data transmission.
