    FTTH Fiber Optical Equipment Single Port ONT 1GE Gepon Gpon Epon Mini Onu

    Ask Lasest Price
    Brand Name : V-solution
    Model Number : V2801RD
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 1000 pcs/day
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    FTTH Fiber Optical Equipment Single Port ONT 1GE Gepon Gpon Epon Mini Onu


    Fiber Optical Equipment Ftth Single Port ONT Mini 1GE Gepon Gpon Epon Onu



    Product Description


    V2801RD G/EPON 1GE ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.


    High lights

    • Routing or Bridging Mode
    • Detecting Rogue ONU
    • Flow & Storm Control , Loop Detection
    • Firewall: DDOS, Filtering Based on ACL/MAC/URL
    • Dual Mode( can access gpon/epon olts ).
    • Compatible with popular OLT(HW,ZTE...)
    • Industrial Design

    Specifications

    LEDMarkColorStatusDescription
    systemSYSGreenOnDevice is powered on and starting.
    BlinkDevice is running normally.
    OffDevice is powered off.
    Optical signal stateREGYellowBlinkDevice is not registered to the PON system.
    GreenBlinkDevice is being registered.
    GreenOnDevice is registered to the PON system.
    InterfaceLINK/ACTGreenOnPort is connected properly .
    OffPort connection exception or not connected.
    BlinkPort is sending or/and receiving data.

    Port TypeFunction
    PONConnect PON port with internet by SC/UPC type, single mode optical fiber cable.
    LANConnect device with ethernet port by RJ-45 cat5 cable.
    RSTPress down reset button and keep1-5seconds to make the device restart and recover from the factory default settings.
    DC12VConnect with power adapter.

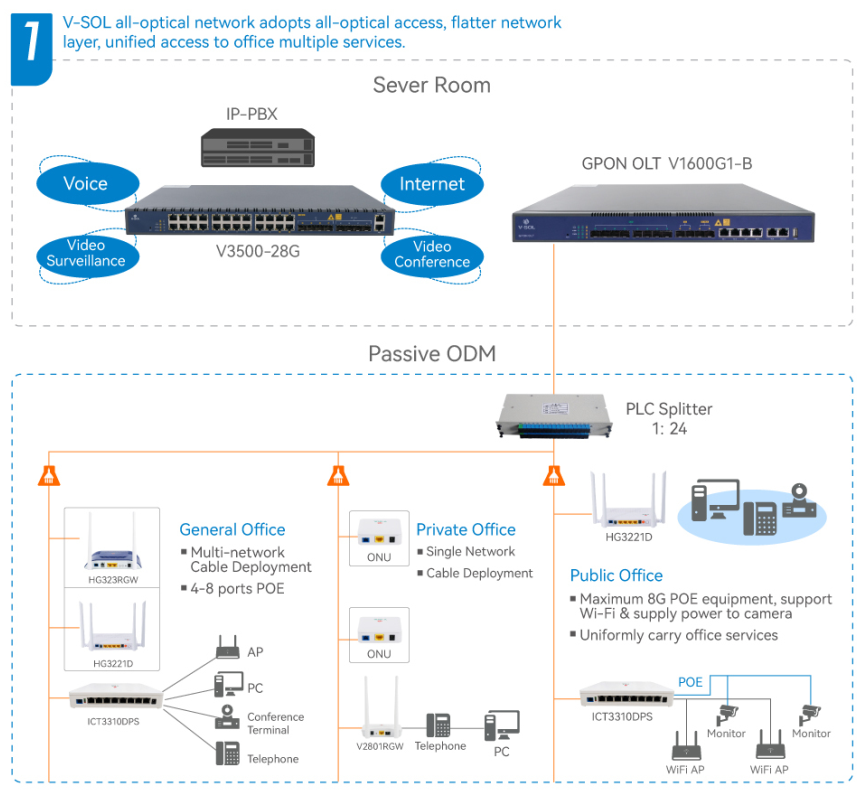

    Application
