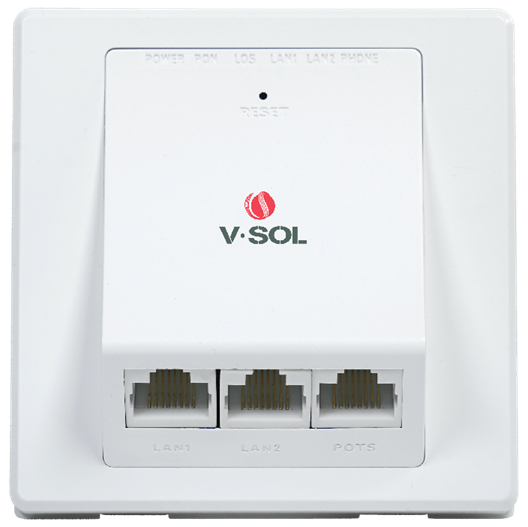

V-SOL HG323P GPON FTTx ONU 86 Type 2x 10 / 100 / 1000Mbps For Hotel

VSOL HG323P GPON ONU 86-Type ONU Panel-Type ONU For Hotel FTTx Solutions

Product Description

1*XPON+2GE+1POTS 86-Type ONU terminal devices are based on the mature Chipset technology, which have high ratio of performance to price, and the technology of Layer 2/3, and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

1*XPON+2GE+1POTS

Key Features

Compatible with 86-Type Panel
IPv4/IPv6 Stack and 86-type
Support SIP protocol
High performance chip
Guaranteed QoS

Application

Function Data

VLAN	•Support VLAN tag mode •Support VLAN trunk mode •Support VLAN translation
Data Service Functions	•Full speed non-blocking switching •1K MAC address table •64 full range VLAN ID •Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc •Support auto polarity detection of Ethernet ports (AUTO MDIX) •Integrated IEEE802.1p QoS with four level priority queues •Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
VoIP	•SIP and IMS SIP •Codec∶G.711/G.723/G.726/G.729 codec •Echo cancellation,VAD/CNG,DTMF •T.30/T.38 FAX •Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference •Line testing according to GR-909
QoS	•Support 8 queues •Support SP and WRR •Support 802.1P and DSCP
L3	•Support IPv4, IPv6 and IPv4/IPv6 dual stack •Support DHCP/PPPOE/Static •Support Static route •Support DHCP Server •Support NAT/DMZ/DDNS •Support Virtual Server
Security	•Support Firewall •Support Mac filter Based on MAC or URL •Support ACL

Hardware Parameter

PON interface	•1 XPON port(EPON PX20+ and GPON Class B+) •SC Single Mode, Receiving sensitivity: ≤28dBm •TX optical power: 0～+4dBm •RX sensitivity: -8 to -25 dBm •Transmission distance: 20KM •RX 2.488Gbps, TX 1.2488Gbps
Wavelength	Tx-1310nm, Rx-1490nm
Optical interface	SC/UPC connector
User interface	•2×10/100/1000 Mbps auto adaptive Ethernet interface , RJ45 connectors •1 POTS RJ45 Connector
