VSOL GPON ONT 2.5GbE 1GE XPON ONT Super Fast For WiFi6 Router Uplink

Ask Lasest Price
Brand Name :	VSOL
Model Number :	V2802RH
Certification :	CE
Price :	$17.91
Payment Terms :	L/C, T/T
Supply Ability :	800K Per Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

VSOL GPON ONT 2.5GbE 1GE XPON ONT Super Fast For WiFi6 Router Uplink

VSOL GPON ONT 2.5GbE XPON ONT Super Fast for WiFi6 Router Uplink

Introduction

V2802RH is support XPON Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function. V2801RH/V2802RH meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products.

Upgrade to a Super-Fast, Futuristic Network

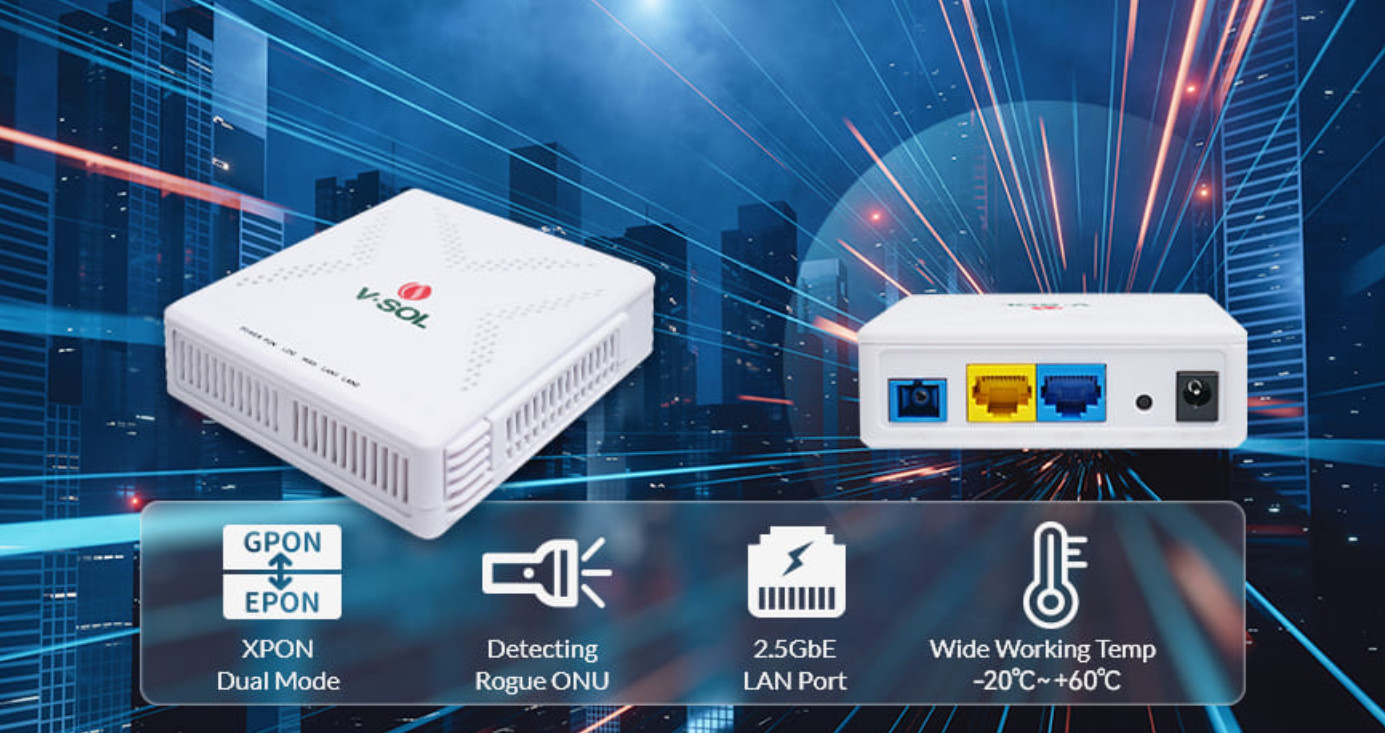

V-SOL 2.5GbE XPON ONT | V2801RH/V2802RH

VSOL GPON ONT 2.5GbE 1GE XPON ONT Super Fast For WiFi6 Router Uplink

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

VSOL GPON ONT 2.5GbE 1GE XPON ONT Super Fast For WiFi6 Router Uplink

Sepcifications

Hardware Parameter
Dimension	100mm92mm29.5mm(LWH)
Net weight	TBD
Operating condition	Operating temp: -20 ~ +60°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp:-30~+70℃ Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Interfaces	12.5GbE+1GE(Option for V2802RH)
Indicators	POWER, PON, LOS, WAN, LAN1, LAN2

Interface parameter
PON interface	1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
LAN interface	12.5GbE+1GE(Option), Auto-negotiation RJ45 connectors
Button	Reset
