Dual Mode GPON ONT FTTH ONU V2801RGW With 1G WIFI 1Port

Ask Lasest Price
Brand Name :	V-solution
Model Number :	V2801RGW
Price :	USD 50/PCS
Payment Terms :	L/C, T/T
Supply Ability :	10K Units per day
Delivery Time :	10 work days

Add to Cart

Product Details
Company Profile

Dual Mode GPON ONT FTTH ONU V2801RGW With 1G WIFI 1Port

Product OverView

G/EPON 1GE+WiFi ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, good WiFi coverage and also has a powerful firewall function.

G/EPON 1GE+WiFi ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah

Product appearance

Specifications

Technical item	1GE
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector
WiFi interface	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM
LED	5, For Status of POWER,LOS,PON,LAN,WiFi
Operating condition	Temperature: 0℃～+50℃ Humidity: 10%～90%(non-condensing)
Storing condition	Temperature : -30℃～+60℃ Humidity :10%～90%(non-condensing)
Power supply	DC 12V/0.5A
Power consumption	≤6W
Dimension	120mm×78mm×30mm(L×W×H)
Net weight	0.15Kg

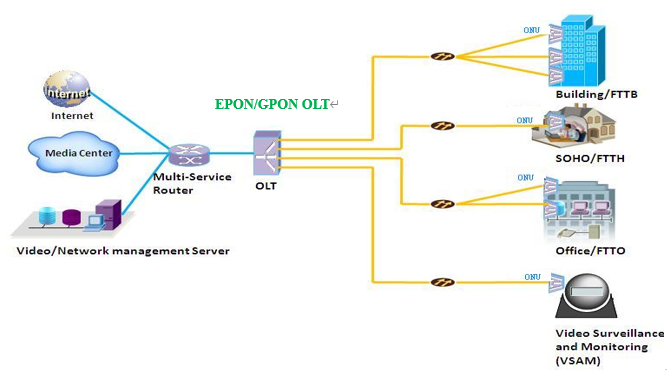

Application
