2.4G 5GHz 2GE 1POTS GPON ONU IEEE802.11b/G/N/Ac GPON XPON Ac Wifi ONU

Product Categories

GPON ONT [56]
GPON OLT [32]
GPON ONU [50]
EPON ONU [32]
EPON OLT [26]
Dual Mode ONU [80]
XPON MDU [24]
WiFi Mesh Routers [26]
5G CPE Router [12]
4G CPE Router [20]
Ethernet Network Switch [20]
Fiber Optical Amplifier [6]
FTTH Optical Receiver [6]
Fiber Optical Transmitter [6]
PLC Fiber Optic Splitter [8]
VoIP Gateway Device [16]

Guangzhou V-Solution Telecommunication Technology Co., Ltd.

Contact Now

Ac GPON XPON Ac Wifi ONU

Ask Lasest Price
Brand Name :	V-solution
Model Number :	HG323DAC
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	1000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

2.4G 5GHz 2GE 1POTS GPON ONU IEEE802.11b/G/N/Ac GPON XPON Ac Wifi ONU

GPON ONU IEEE802.11b/g/n/ac 2.4G/5GHz 2GE+1POTS+Wifi GPON XPON ac wifi ONU

Product Description

HG323DAC is a 2GE+1POTS+WiFi (4T4R) XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.

It can also be applied to a wide temperature environment, and also has a firewall function.

Real-Time Fiber-line Fault Detection

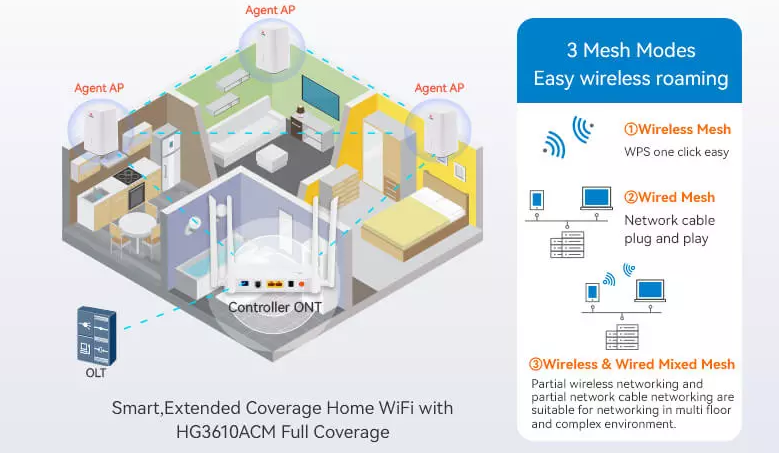

EasyMesh : Smart, Extended Coverage Home WiFi

Key Features

HGU ONU, bridging and routing modes can be set
Dual mode ONU compatible with popular EPON and GPON OLT
Support loop detection, IGMP, IGMP snooping
802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Support port speed, support for storm suppression
Support 802.11a/b/g/n/ac WiFi(4T4R), rate up to 1.167Gbps
Support No-auth, WEP, WPA-PSK and WPA2-PSK
Support Telnet, CLI, OMCI/OAM /TR069 and Web management
POTS function support SIP protocol
Support NAT, Firewall function
Support remote software upgrade

Application

FTTH, fixed network operators or cable operators. and others

Specifications

Technical item	2GE+1POTS+WiFi
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0～+4dBm Transmission distance: 20KM
Wavelength	Tx1310nm,Rx 1490nm
Optical interface	SC/UPC connector
LAN interface	2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
POTS interface	1 x RJ11 connectors Support: G.711A/G.711U/G.723/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay
WiFi interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm
LED	9, For Status of POWER,LOS,PON,WAN, LAN1,LAN2,2.4G,5G,PHONE
Operating condition	Temperature: 0℃～+50℃ Humidity: 10%～90%(non-condensing)
Storing condition	Temperature: -30℃～+60℃ Humidity: 10%～90%(non-condensing)
Power adapter	DC 12V/1.5A or DC12V/1.0A
