4GE AC WIFI GPON ONU 2USB 5dBi 4 Antennas Dual Band Ftth Modem

Ask Lasest Price
Brand Name :	V-solution
Model Number :	HG325DAC
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	1000 pcs/day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

4GE AC WIFI GPON ONU 2USB 5dBi 4 Antennas Dual Band Ftth Modem

Dual Band Ftth Modem 4GE+ACWIFI+2USB Xpon Onu Wifi Gpon Onu 5dBi 4 Antennas Xpon Onu

Product Description

GE+1POTS+2USB+WiFi GPON/EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through VSOL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.

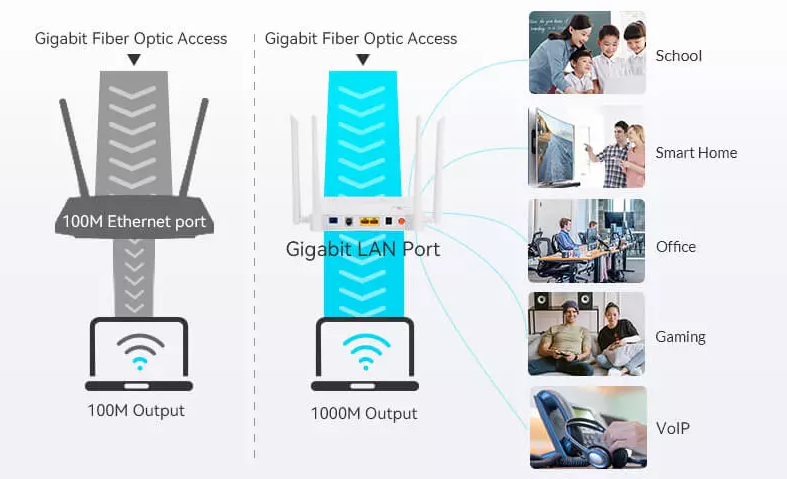

AC1200 Dual Gigabit Interfaces for Gigabit Broadband Access Applications

Key Features

XPON Dual Mode
Support rich QinQ VLAN functions and IGMP Snooping multicast features
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
Support NAT, Firewall function
Plug and play,auto-detecting, auto-configuration
802.11n/ac dual band WiFi
Support full management of HGU devices
Support guaranteed QoS
Support IPv4/IPv6

Application

FTTH, fixed network operators or cable operators. and others

Specifications

item	value
Place of Origin	China
Brand Name	V-solution
Model Number	HG325DAC
Type	FTTx Solutions
Use	FTTX
User interface	4GE+1POTS+2*USB+WiFi5
Wavelength	Tx1310nm,Rx 1490nm
Optical interface	SC/UPC connector
Power adapter	DC 12V/1.5A
Max Power consumption	12W
Dimensions	178mm120mm30m
Weight	0.42kg

Interface parameter

PON interface	•1 G/EPON port(EPON PX20+ and GPON Class B+) •Receiving sensitivity: ≤-28dBm •Transmitting optical power: 0～+4dBm •Transmission distance: 20KM
Wavelength	•Tx1310nm,Rx 1490nm
Optical interface	•SC/UPC connector
LAN interface	•4 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
POTS interface	• 1 x RJ11 connectors • Support: G.711A/G.711U/G.723/G.729 codec • Support: T.30/T.38/G.711 Fax mode, DTMF • Relay
WLAN interface	• Compliant with IEEE802.11b/g/n/ac • 2.4GHz Operating frequency: 2.400- 2.483GHz • 5.0GHz Operating frequency: 5.150-5.825GHz • Support MIMO, 4T4R,5dBi external antenna, • rate up to 1.167Gbps • Support: multiple SSID • TX power: 11n--22dBm/11ac--24dBm
